Linear fitting example

In this section we demonstrate how a spline grid can be fitted. We will fit a spline surface to the following image.

using FileIO
using CairoMakie
image = rotr90(load(normpath(@__DIR__, "julia_logo.png")))
fig = Figure()
ratio = size(image, 1) / size(image, 2)
ax = Axis(fig[1, 1], aspect = ratio)
CairoMakie.image!(ax, image)
fig
Example block output

Defining the spline grid

We define a spline grid with 2 input dimensions, 1 output dimension and a sample grid which matches the image resolution.

using Colors: Gray
using SplineGrids

degree = (2, 2)
image_array = Float32.(Gray.(image))
n_sample_points = size(image_array)
n_control_points = ntuple(i -> n_sample_points[i] ÷ 25, 2)
extent = ntuple(i -> (0, n_sample_points[i]), 2)
dim_out = 1

spline_dimensions = ntuple(
    i -> SplineDimension(
        n_control_points[i], degree[i], n_sample_points[i]; extent = extent[i]),
    2)
spline_grid = SplineGrid(spline_dimensions, dim_out)
spline_grid
SplineGrid surface with outputs in ℝ¹ (Float32)
-----------------------------------------------
* Properties per dimension:
┌─────────────────┬────────┬───────────────────┬─────────────────┐
│ input dimension │ degree │ # basis functions │ # sample points │
├─────────────────┼────────┼───────────────────┼─────────────────┤
│               1 │      2 │                11 │             275 │
│               2 │      2 │                 9 │             225 │
└─────────────────┴────────┴───────────────────┴─────────────────┘
* Control points:
DefaultControlPoints for grid of size (11, 9) in ℝ¹ (Float32).

The basis of this spline geometry looks like this:

plot_basis(spline_grid; title = "Unrefined spline basis")
Example block output

Fitting

We fit the spline surface to the image in a least squares sense, by interpreting the spline grid evaluation as a linear mapping.

using LinearMaps
using IterativeSolvers
using Plots

function fit!(spline_grid)
    spline_grid_map = LinearMap(spline_grid)
    sol = lsqr(spline_grid_map, vec(image_array))
    copyto!(
        spline_grid.control_points,
        reshape(sol, get_n_control_points(spline_grid.control_points), dim_out)
    )
    evaluate!(spline_grid.control_points)
    evaluate!(spline_grid)
end

function plot_fit(spline_grid)
    Plots.plot(spline_grid; aspect_ratio = :equal, title = "Least squares fit",
        clims = (-0.5, 1.5), cmap = :viridis)
end

fit!(spline_grid)
plot_fit(spline_grid)
Example block output

Matrix

The least-squares fitting procedure above is matrix free, but the linear mapping can be converted into a (sparse) matrix for inspection.

using SparseArrays

# Make an analogous spline geometry with a smaller sample grid so the output dimensionality is not too large
n_control_points = (5, 5)
degree = (2, 2)
n_sample_points = (15, 15)
dim_out = 1

spline_dimensions = SplineDimension.(n_control_points, degree, n_sample_points)
spline_grid_ = SplineGrid(spline_dimensions, dim_out)
spline_grid_map = LinearMap(spline_grid_)
M = sparse(spline_grid_map)
Plots.heatmap(M[end:-1:1, :])
Example block output

Local refinement informed by local error

Clearly the error of the fit is largest where the text is:

err_unrefined = (spline_grid.eval - image_array) .^ 2

function plot_error(error)
    Plots.heatmap(error[:, :, 1]', colormap = cgrad(:RdYlGn, rev = true),
        aspect_ratio = :equal, clims = (0, 1))
    title!("Squared error per pixel")
end
    CairoMakie.heatmap!(

plot_error(err_unrefined)
Example block output

We can easily locally refine the spline basis by mapping this error back on to the control points.

function refine(spline_grid)
    spline_grid = add_default_local_refinement(spline_grid)
    error_informed_local_refinement!(spline_grid, err_unrefined)
    deactivate_overwritten_control_points!(spline_grid.control_points)
    spline_grid
end

spline_grid = refine(spline_grid)
plot_basis(spline_grid; title = "Refined spline basis (level 1)")
Example block output

We can now fit the image again with the refined basis.

fit!(spline_grid)
plot_fit(spline_grid)
Example block output

and the local error looks a bit better:

err_refined = (spline_grid.eval - image_array) .^ 2
plot_error(err_refined)
Example block output

Iterating local refinement

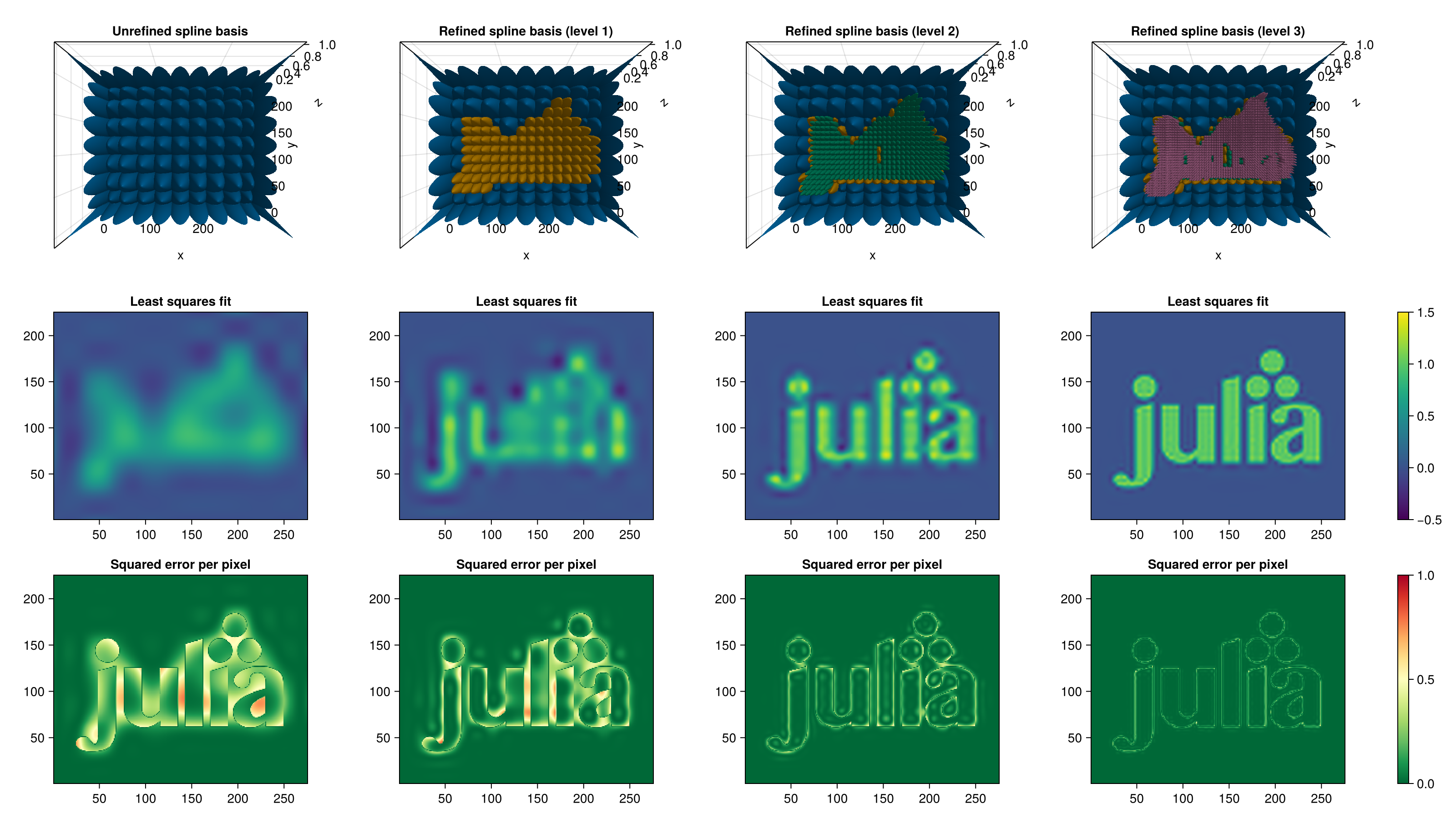

Let's iterate the local refinement and fitting procedure a few more times to get a nicer result!

    plot_basis!(
Example block output
